High-Temperature FlameShieldä Pure Silicone Tape
General Information

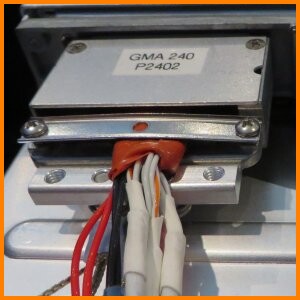

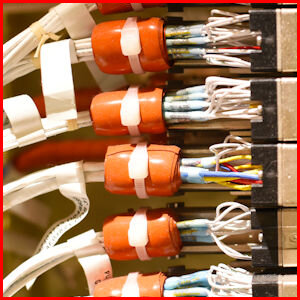

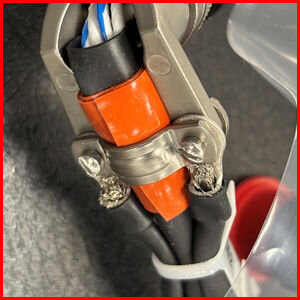

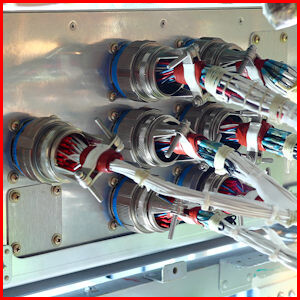

FlameShieldä Pure Silicone Tape is a self-extinguishing non-flammable tape without an adhesive. Forms an excellent seal that is weather/water/air-tight when wrapped around electrical connections and connectors, cable and wiring splices, hydraulic hose protection sleeves, duct joints and other electro-mechanical devices. The special silicone formulation of this tape self-fuses (self-amalgamating) when stretched and over-wrapped. Completely flexible at cold temperatures and can be used to +500ºF / +260ºC continuous exposure. Does not support combustion and resists heat, flame, welding splatter, molten metals, solder drips, slag, sparks, Ozone, UV light and contamination. Can be wrapped over oily or wet surfaces and is an excellent emergency repair tape for hoses and pipes. Used extensively in aviation, marine and industrial maintenance, repair and overhaul operations.
FlameShieldä Pure Silicone Tape is a self-extinguishing non-flammable tape without an adhesive. Forms an excellent seal that is weather/water/air-tight when wrapped around electrical connections and connectors, cable and wiring splices, hydraulic hose protection sleeves, duct joints and other electro-mechanical devices. The special silicone formulation of this tape self-fuses (self-amalgamating) when stretched and over-wrapped. Completely flexible at cold temperatures and can be used to +500ºF / +260ºC continuous exposure. Does not support combustion and resists heat, flame, welding splatter, molten metals, solder drips, slag, sparks, Ozone, UV light and contamination. Can be wrapped over oily or wet surfaces and is an excellent emergency repair tape for hoses and pipes. Used extensively in aviation, marine and industrial maintenance, repair and overhaul operations.
Easy & Clean to Use

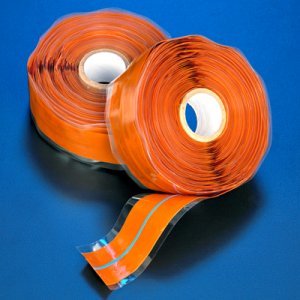

FlameShieldä Pure Silicone Tape incorporates a blue marking stripe along its center, making it easy to over-wrap at 50% when taping long lengths. The triangular profile of the tape (thickest in the centre and reducing thickness towards each edge) ensures a smooth finish to the installation with minimum ridging. Easy to remove with a sharp blade while curing or when completely cured and does not leave a gummy or sticky residue the way pressure sensitive adhesive tapes such as standard vinyl electrical tapes or duct tapes do.
FlameShieldä Pure Silicone Tape incorporates a blue marking stripe along its center, making it easy to over-wrap at 50% when taping long lengths. The triangular profile of the tape (thickest in the centre and reducing thickness towards each edge) ensures a smooth finish to the installation with minimum ridging. Easy to remove with a sharp blade while curing or when completely cured and does not leave a gummy or sticky residue the way pressure sensitive adhesive tapes such as standard vinyl electrical tapes or duct tapes do.
Available in a 1" and
1.5" wide tape.
Each roll contains
432" / 36' / 10.9m of tape.
1.5" wide tape.
Each roll contains
432" / 36' / 10.9m of tape.
How to Install FlameShieldä Pure Silicone Tape
Lift off the end of the tape from its backing film and then hold the free end onto what the tape is being installed on. With your other hand which is holding the remainder of the tape roll, moderately pull or stretch the tape while over-lapping the wrap. The stretching action activates the special formulation of silicone rubber with the result of the tape self-binding / self-fusing to itself.
Lift off the end of the tape from its backing film and then hold the free end onto what the tape is being installed on. With your other hand which is holding the remainder of the tape roll, moderately pull or stretch the tape while over-lapping the wrap. The stretching action activates the special formulation of silicone rubber with the result of the tape self-binding / self-fusing to itself.
FlameShield™
Pure Silicone Tape is
Self-Fusing / Self-Bonding
and non-flammable.
Pure Silicone Tape is
Self-Fusing / Self-Bonding
and non-flammable.
Highly Resistant to Harsh Environments
FlameShieldä Pure Silicone Tape resists fuels, oils, acids, solvents, UV, Ozone, high-heat, flame exposure, molten metal splashes, slag, solder drips & sparks. The proprietary silicone formulation provides optimal thermal dispersion (high thermal conductivity) and also gives this tape its iron-oxide red colour.
FlameShieldä Pure Silicone Tape resists fuels, oils, acids, solvents, UV, Ozone, high-heat, flame exposure, molten metal splashes, slag, solder drips & sparks. The proprietary silicone formulation provides optimal thermal dispersion (high thermal conductivity) and also gives this tape its iron-oxide red colour.
Fusing / Bonding Time
FlameShieldä Pure Silicone Tape when over-wrapped under tension adheres to itself and fuses, forming a solid protective shield in 24 hours at room temperature or in just 4 hours at +356ºF / +180ºC. The tape starts to self-fuse / self-bond as it is used, and can be re-seated if necessary within a few seconds of over-wrapping. After a few minutes it is usually necessary to remove the tape with a knife.
FlameShieldä Pure Silicone Tape when over-wrapped under tension adheres to itself and fuses, forming a solid protective shield in 24 hours at room temperature or in just 4 hours at +356ºF / +180ºC. The tape starts to self-fuse / self-bond as it is used, and can be re-seated if necessary within a few seconds of over-wrapping. After a few minutes it is usually necessary to remove the tape with a knife.
Many Practical Uses
FlameShieldä pure silicone tape makes for easy hose and cable bundling, replacing tie-wraps. Excellent for fixing leaks in piping and hoses. Makes a good emergency fan belt. Provides excellent weather protection for outdoor electrical and electronic connections. Great as a first-aid tape to hold splints & bandages in place.
FlameShieldä pure silicone tape makes for easy hose and cable bundling, replacing tie-wraps. Excellent for fixing leaks in piping and hoses. Makes a good emergency fan belt. Provides excellent weather protection for outdoor electrical and electronic connections. Great as a first-aid tape to hold splints & bandages in place.
The proprietary silicone formulation provides optimal thermal dispersion.
FlameShieldä Pure Silicone Tape
for Aviation, Automotive, Marine,
Industrial & Electrical Use.
Non-flammable & self-extinguishing.
for Aviation, Automotive, Marine,
Industrial & Electrical Use.
Non-flammable & self-extinguishing.
We Accept:
Specifications & Standards
FlameShieldä Pure Silicone Tape may also be certified to the following specifications upon request (fees apply):
· Commercial Specification A-A-59163 Type II (Previously MIL-I-46852C Type II)
· Military Specification MIL-I-22444C,
· Underwriters Laboratories Inc UL-510
· Boeing DMS2186 Type II,
· Lockheed Martin MMS J517 & 5-00857
· Safe Flight 59562-5
· Systems & Electronics Inc ES7889
· McDonnell Douglas Helicopter HS5215
· General Dynamics P5384 Type II,
· General Electric A50A493 / A50E112 / P5384
· Rohr RMS315
· FAR 25.853
· CSA 22.2
· Premier Farnell Corp 810112
FlameShieldä Pure Silicone Tape may also be certified to the following specifications upon request (fees apply):
· Commercial Specification A-A-59163 Type II (Previously MIL-I-46852C Type II)
· Military Specification MIL-I-22444C,
· Underwriters Laboratories Inc UL-510
· Boeing DMS2186 Type II,
· Lockheed Martin MMS J517 & 5-00857
· Safe Flight 59562-5
· Systems & Electronics Inc ES7889
· McDonnell Douglas Helicopter HS5215
· General Dynamics P5384 Type II,
· General Electric A50A493 / A50E112 / P5384
· Rohr RMS315
· FAR 25.853
· CSA 22.2
· Premier Farnell Corp 810112
11/08
· TYT-200-1
· P36728
· TBFT201-36
· NSN / NATO / OTAN 5970-00-177-1627
· P36728
· TBFT201-36
· NSN / NATO / OTAN 5970-00-177-1627
Available in Oxide-Red & Black
COLORS

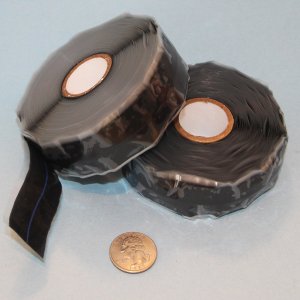

1" wide tape is available
in Oxide-Red & Black
1.5" wide tape is available in Oxide-Red only
1" wide tape is available
in Oxide-Red & Black
1.5" wide tape is available in Oxide-Red only
ABST-ROR-24-20
1.5" wide x 36 feet, rectangular profile.
$37.43 USD per roll
ordered on-line.
(List Price $47.00 USD)
1.5" wide x 36 feet, rectangular profile.
$37.43 USD per roll
ordered on-line.
(List Price $47.00 USD)
PRICE FOR 1"
Type I is $34.71 per roll
Type II is $33.80 per roll
Certification:
$6.00 per roll
$10.00 per lot / batch
Available in Oxide-Red and Black
Type I is $34.71 per roll
Type II is $33.80 per roll
Certification:
$6.00 per roll
$10.00 per lot / batch
Available in Oxide-Red and Black
